4.3 Weather Analysis and Weather Maps

Presentation

•

Science

•

9th - 12th Grade

•

Practice Problem

•

Easy

•

NGSS

MS-ESS2-5, MS-ESS3-2, MS-ESS2-6

Standards-aligned

Joseph Davis

Used 1+ times

FREE Resource

15 Slides • 10 Questions

Word Cloud

Let's Review....

List one of the steps involved in weather forecasting.

Type response here

Open Ended

Think about it...

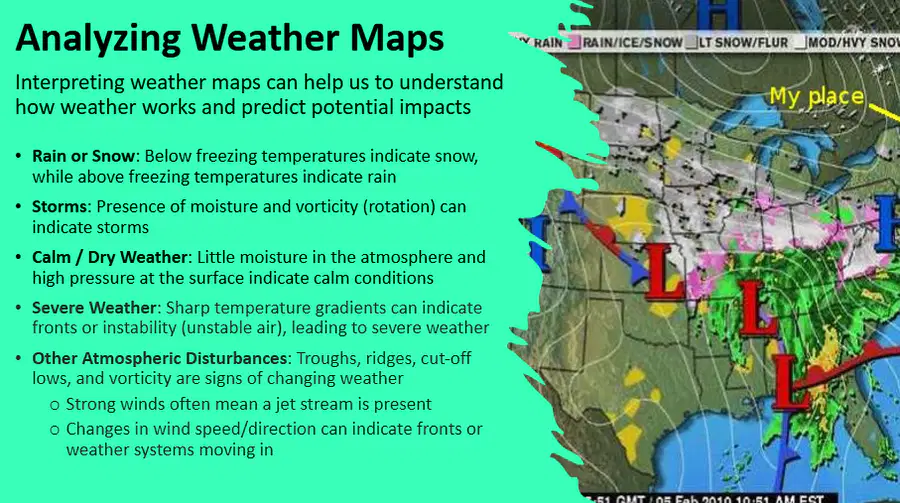

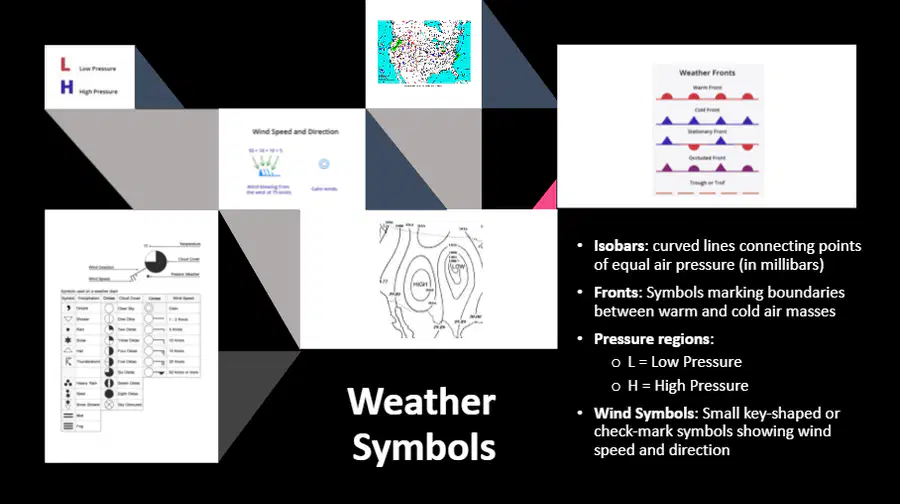

Maps use specific symbols to indicate weather patterns at different places and times of day.

What are some symbols you can think of that could be seen on a weather map?

Type response here

Match

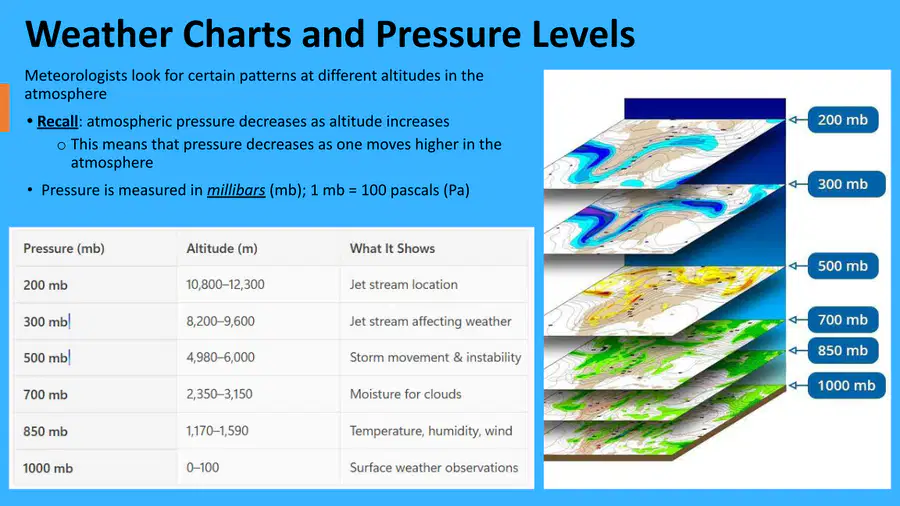

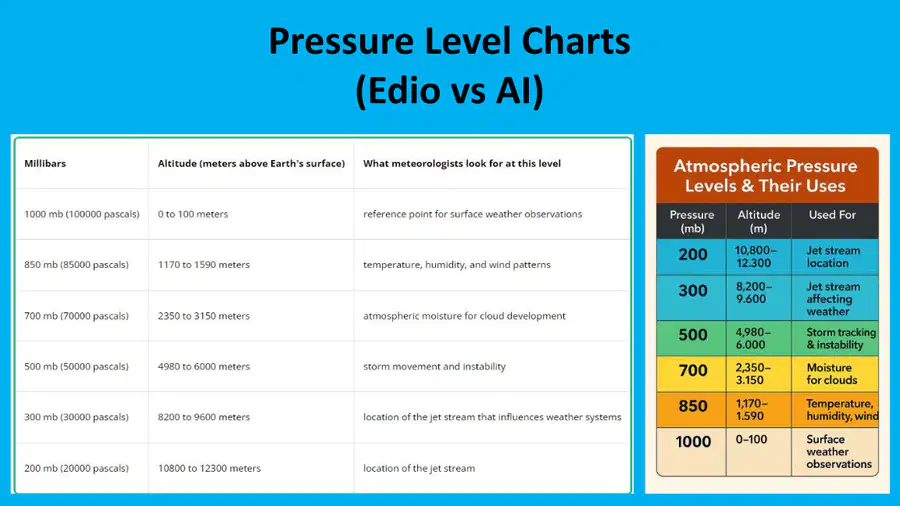

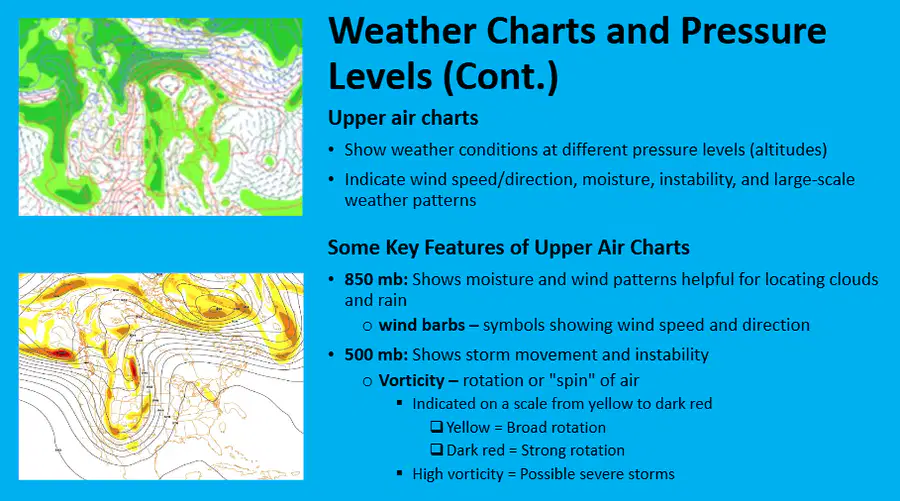

Match the atmospheric levels with the atmospheric phenomena meteorologists observe.

instability and storm formation

jet stream position

moisture and presence of clouds

temperature and humidity

500 mb

300 mb

700 mb

850 mb

Multiple Choice

What weather conditions can be expected near this symbol on a surface map AFTER it passes?

decreasing temperatures and clearing skies

increases the humidity levels, making it feel warm and sticky

calm winds and increased cloudy skies

Multiple Choice

A meteorologist makes a forecast that includes storms in the afternoon. Storms do happen in the afternoon, but two of those storms ultimately produce tornadoes, which the forecast did not include.

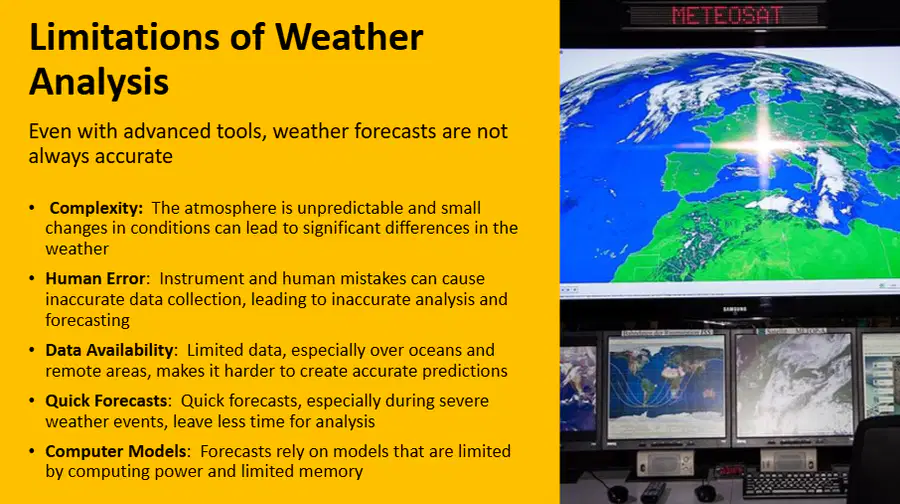

Which limitation of weather forecasting most likely resulted in this error?

The computer that the meteorologist was using did not have enough power to show tornadoes in a weather model.

A meteorologist did the forecast too quickly and missed the chance of tornadoes.

Some weather phenomena are still not fully understood.

Labelling

Label the layer of the atmosphere by indicating what meteorologists look for in that layer.

Drag labels to their correct position on the image

Jet stream

Precipitation type

H- and L-pressure and fronts

Spin (vorticity)

Multiple Choice

Which of the following describes the relationship between vorticity and weather systems?

Low vorticity is typically associated with the development of strong weather systems.

High vorticity is typically associated with the development of strong weather systems.

High vorticity is typically associated with calm weather conditions.

Multiple Choice

What level of the atmosphere would a meteorologist use to determine the type of precipitation that could fall?

300 mb

850 mb

surface level

Open Ended

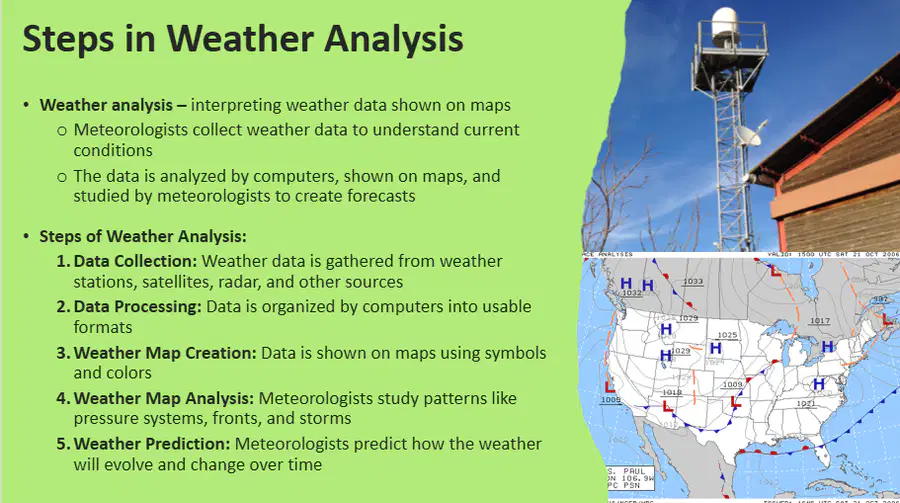

Define weather analysis and explain the process.

^{You may start your answer with:}

Weather analysis is the process of . . .

The steps involved in the process of weather analysis are . . .

Type response here

Dropdown

Exit Ticket...

An L on a weather map stands for:

Let's Review....

List one of the steps involved in weather forecasting.

Type response here

Show answer

Auto Play

Slide 1 / 25

WORD CLOUD
