Ultrasound Physics - Chapter 6
Presentation
•
Physics
•
Vocational training
•
Hard
Kathy Morris
FREE Resource
30 Slides • 28 Questions
1
2
3
Open Ended
Why do you think sound waves might lose strength or change direction as they move through different materials?
4
Multiple Choice
What are some factors that can affect the way sound waves travel through a medium?
The temperature of the medium
The density of the medium
The speed of the source
All of the above
5
6
Multiple Choice

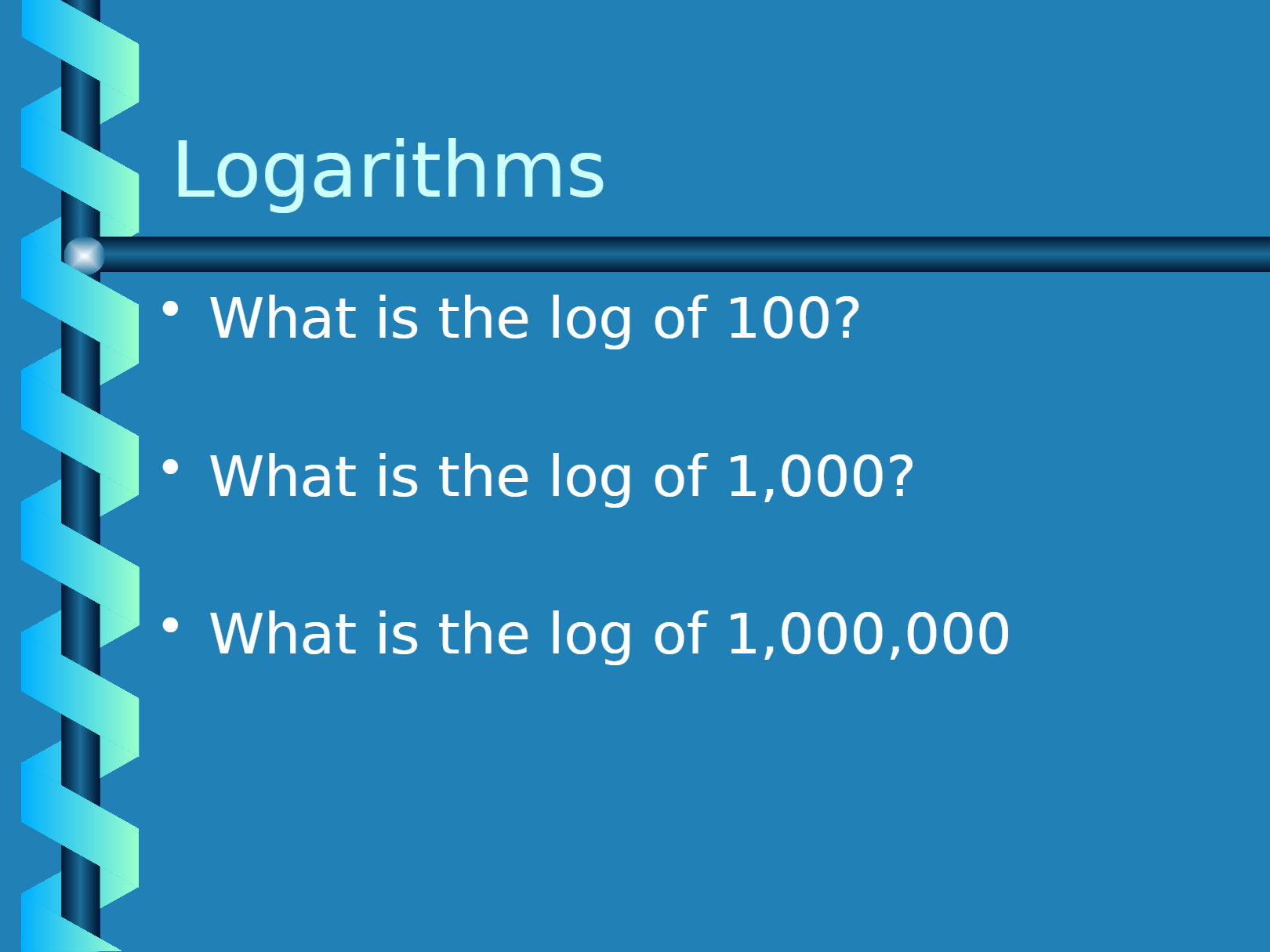

Which of the following scales is measured using logarithms?
Richter scale
Celsius scale
Kelvin scale
Decibel scale
7
8
Fill in the Blanks
Type answer...
9
10
Open Ended
Explain how logarithms are used in measuring the strength of sound beams and earthquakes. Provide examples from both contexts.
11
12
Multiple Choice

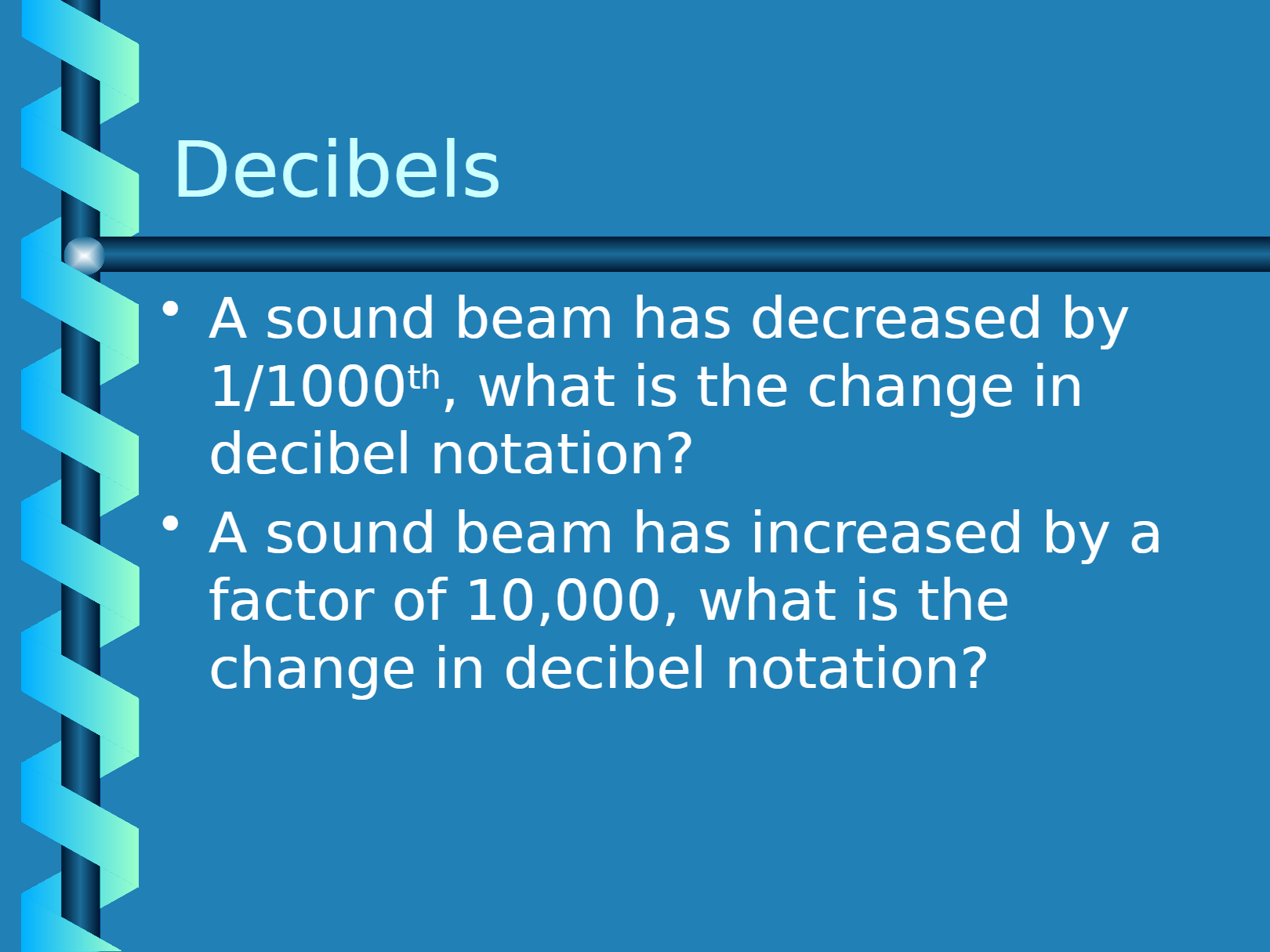

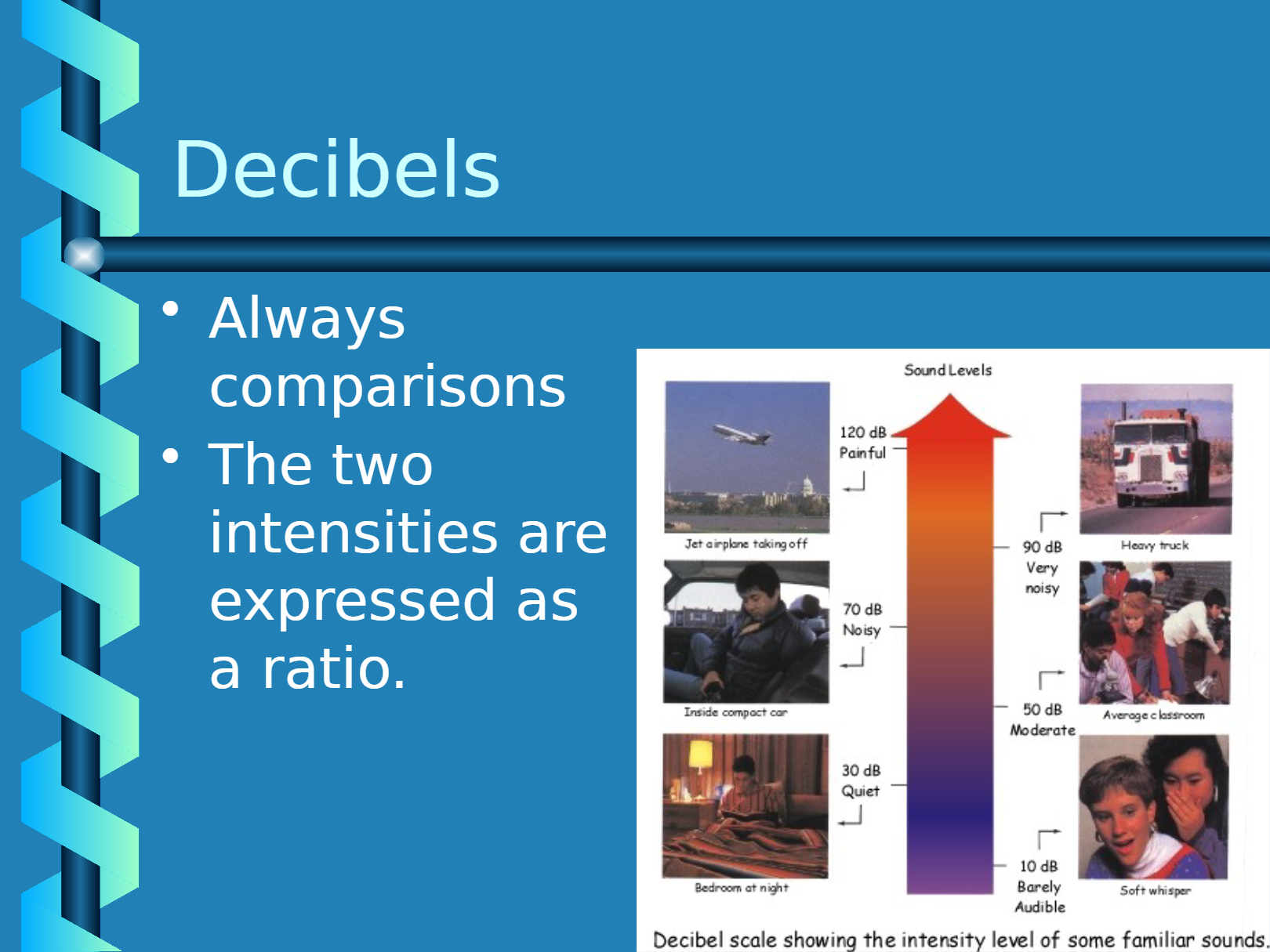

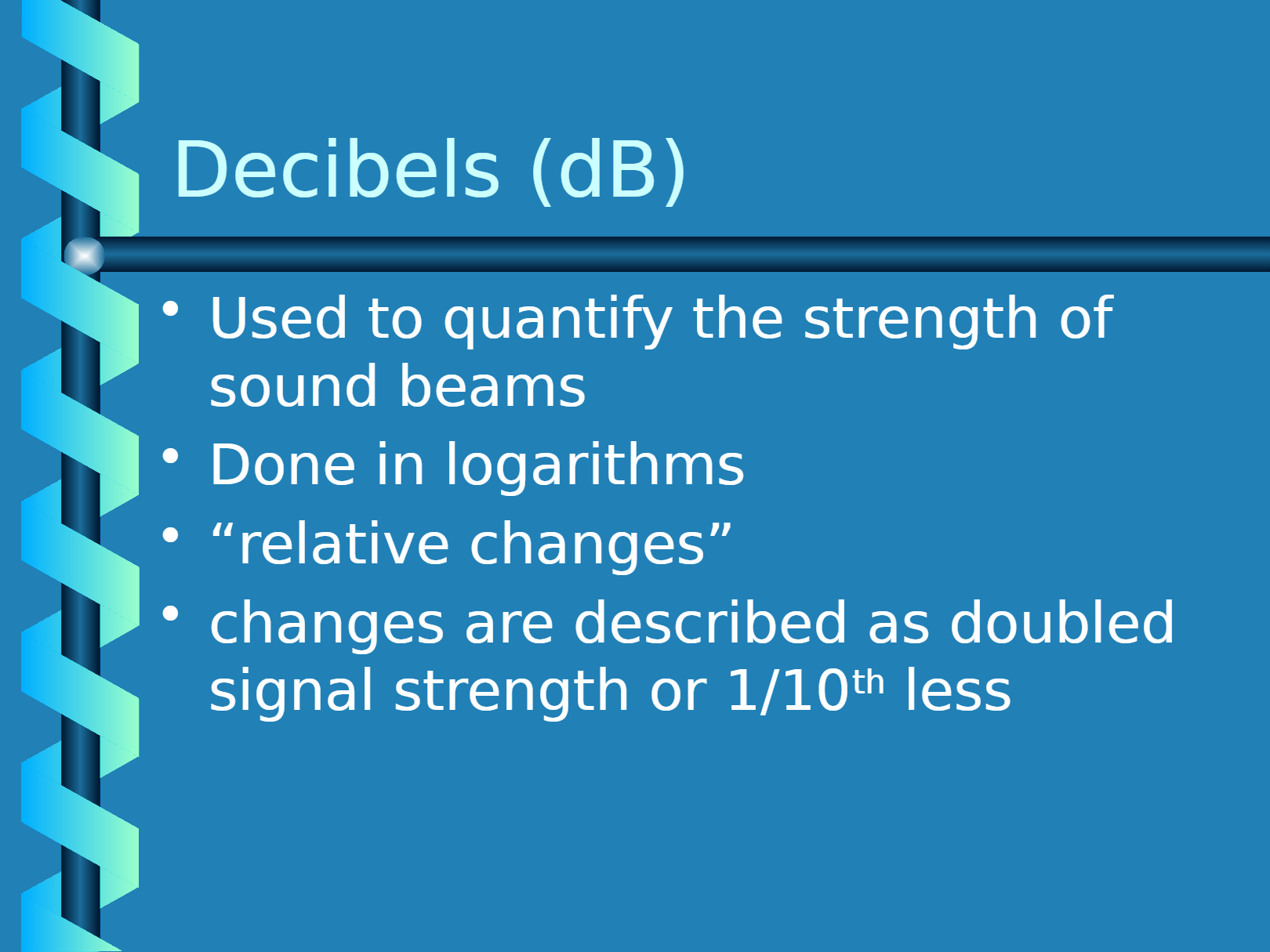

Which of the following statements about decibels is correct?
Decibels measure absolute sound levels.
Decibels are always expressed as a ratio of two intensities.
Decibels do not use logarithms.
Decibels are used only for quiet sounds.
13
14
Multiple Select

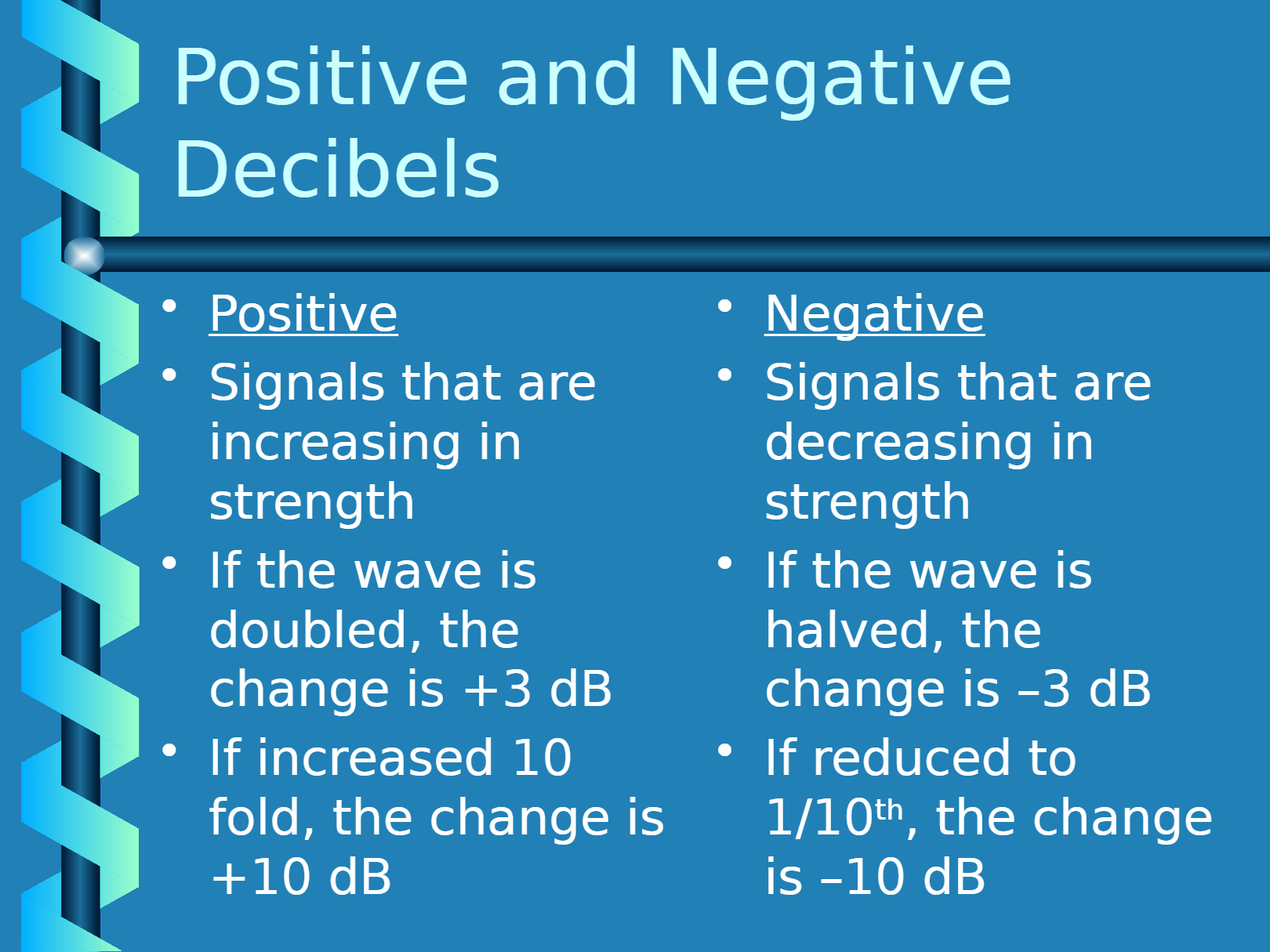

Select all correct statements about positive and negative decibels.
Positive decibels indicate increasing signal strength.
Negative decibels indicate decreasing signal strength.
Doubling the wave results in +10 dB.
Halving the wave results in -3 dB.
15
16
Fill in the Blanks
Type answer...
17
18
19
Fill in the Blanks
Type answer...
20
Multiple Choice

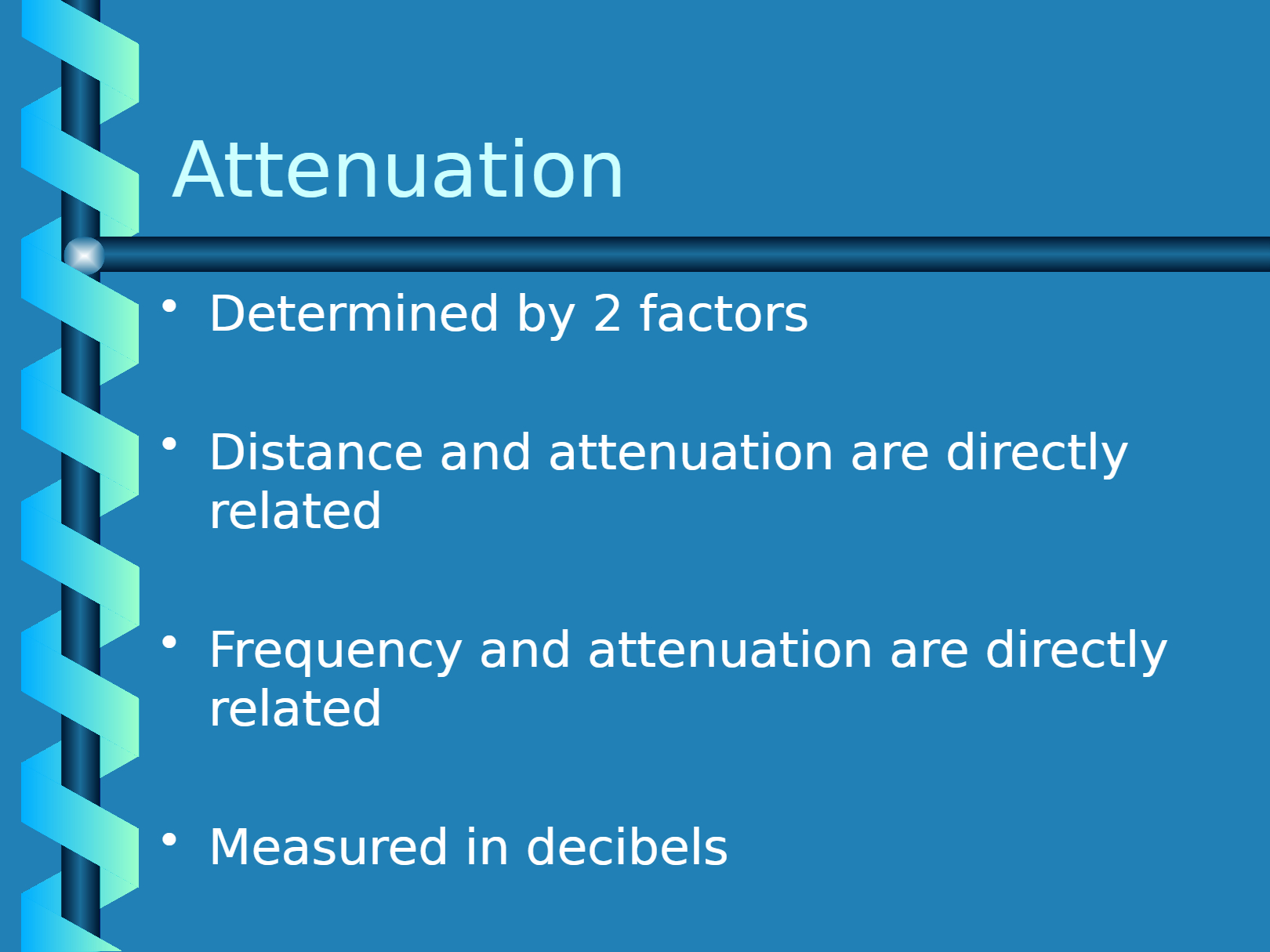

Which two factors determine attenuation in signals?
Distance and frequency
Amplitude and wavelength
Phase and velocity
Temperature and pressure
21
22
Multiple Choice

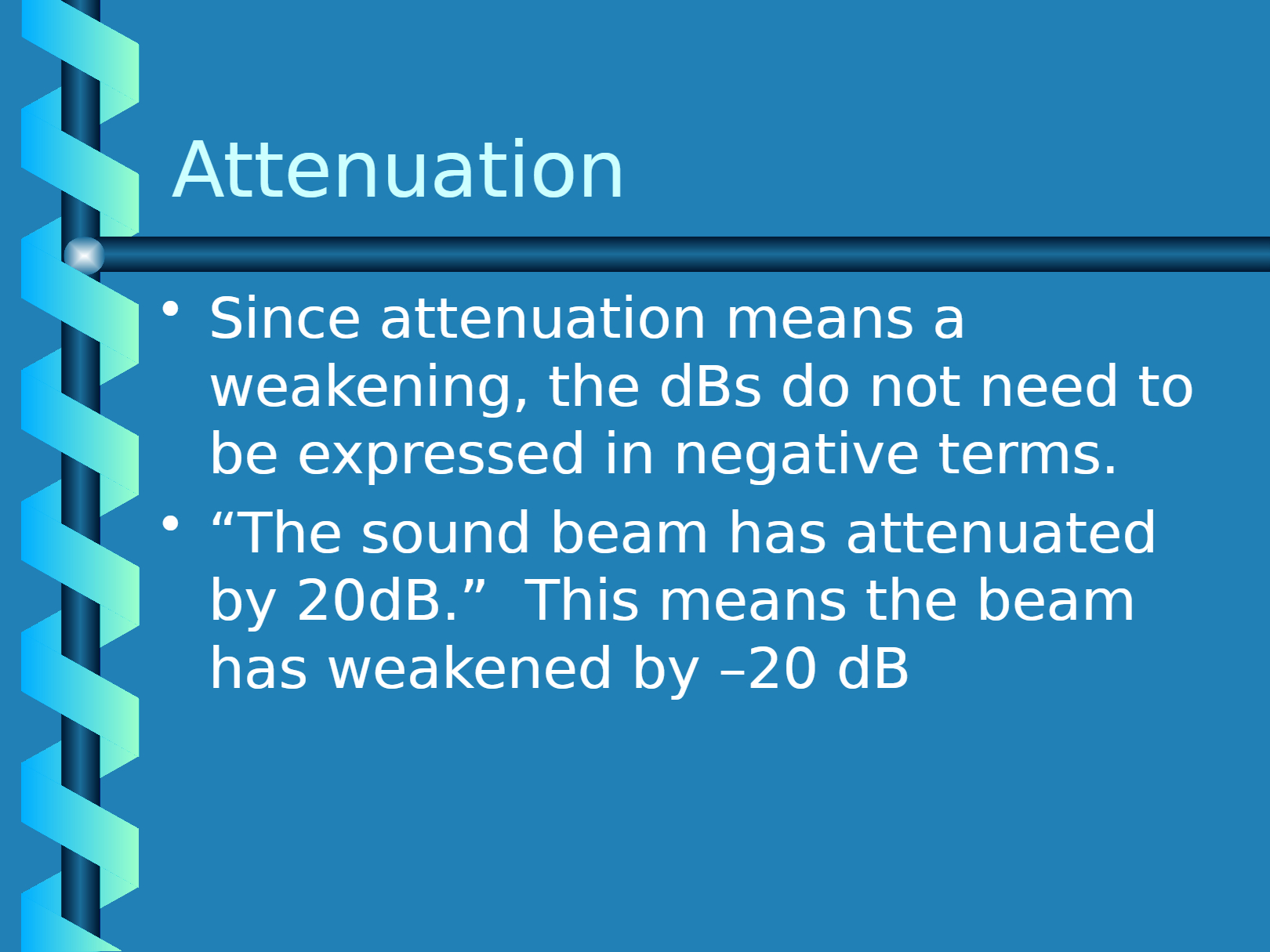

If a sound beam has attenuated by 20 dB, what does this mean?
The beam has strengthened by 20 dB
The beam has weakened by 20 dB
The beam has not changed
The beam has doubled in strength
23
Open Ended
Explain the relationship between distance, frequency, and attenuation as described in the slides.
24
25
Multiple Select

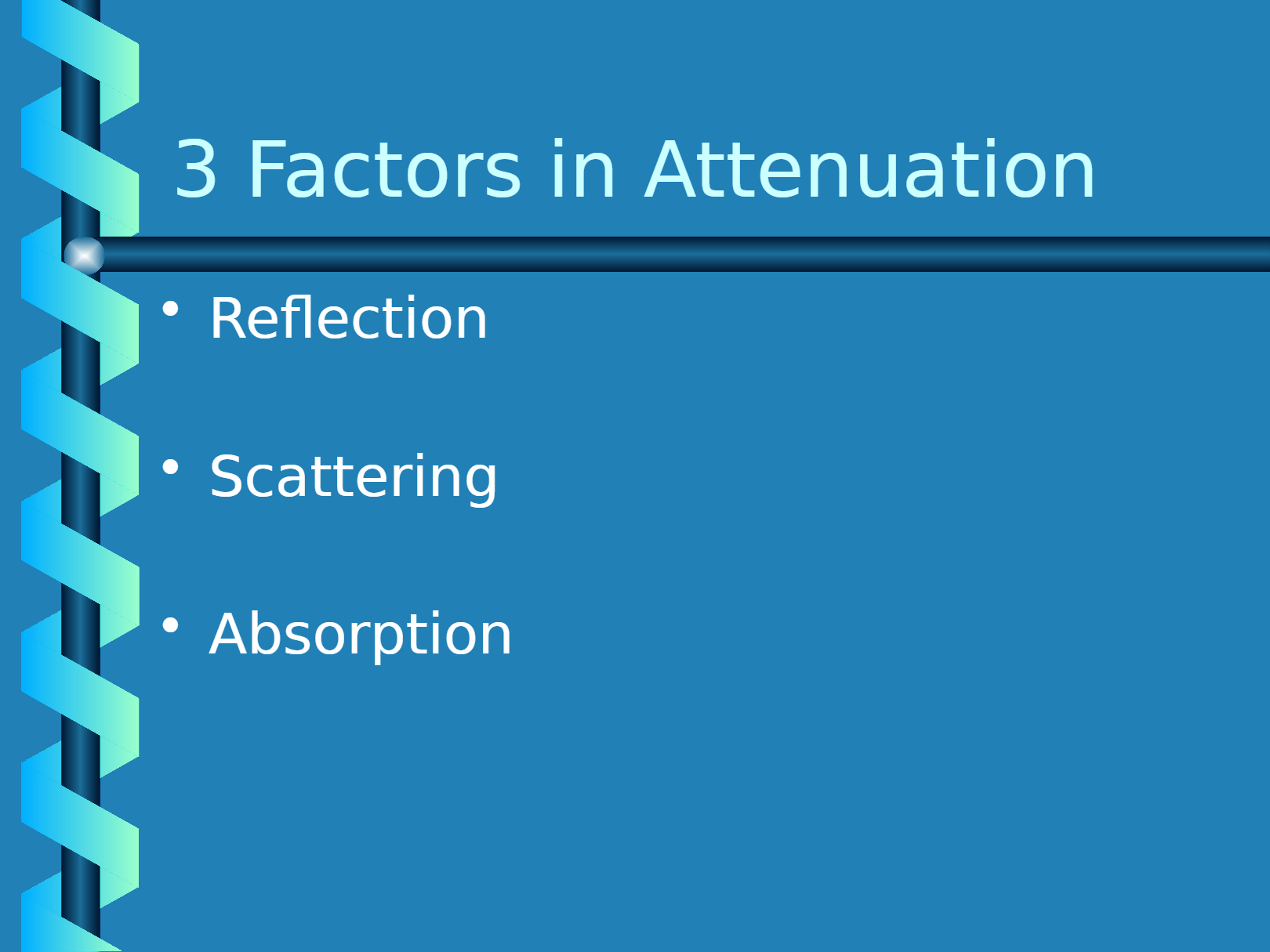

Which of the following are factors in attenuation?
Reflection
Scattering
Absorption
Diffraction
26
27
28
Open Ended

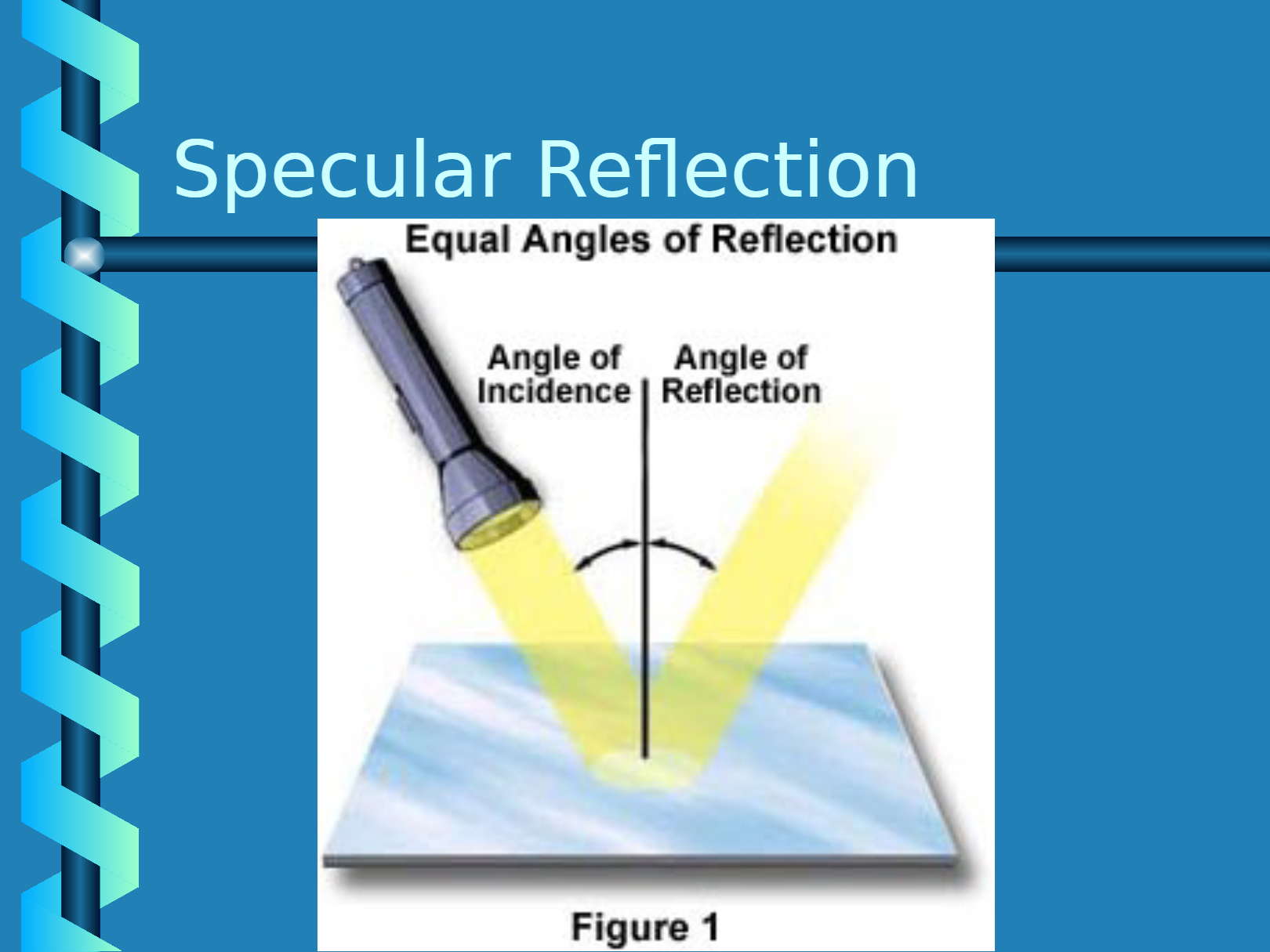

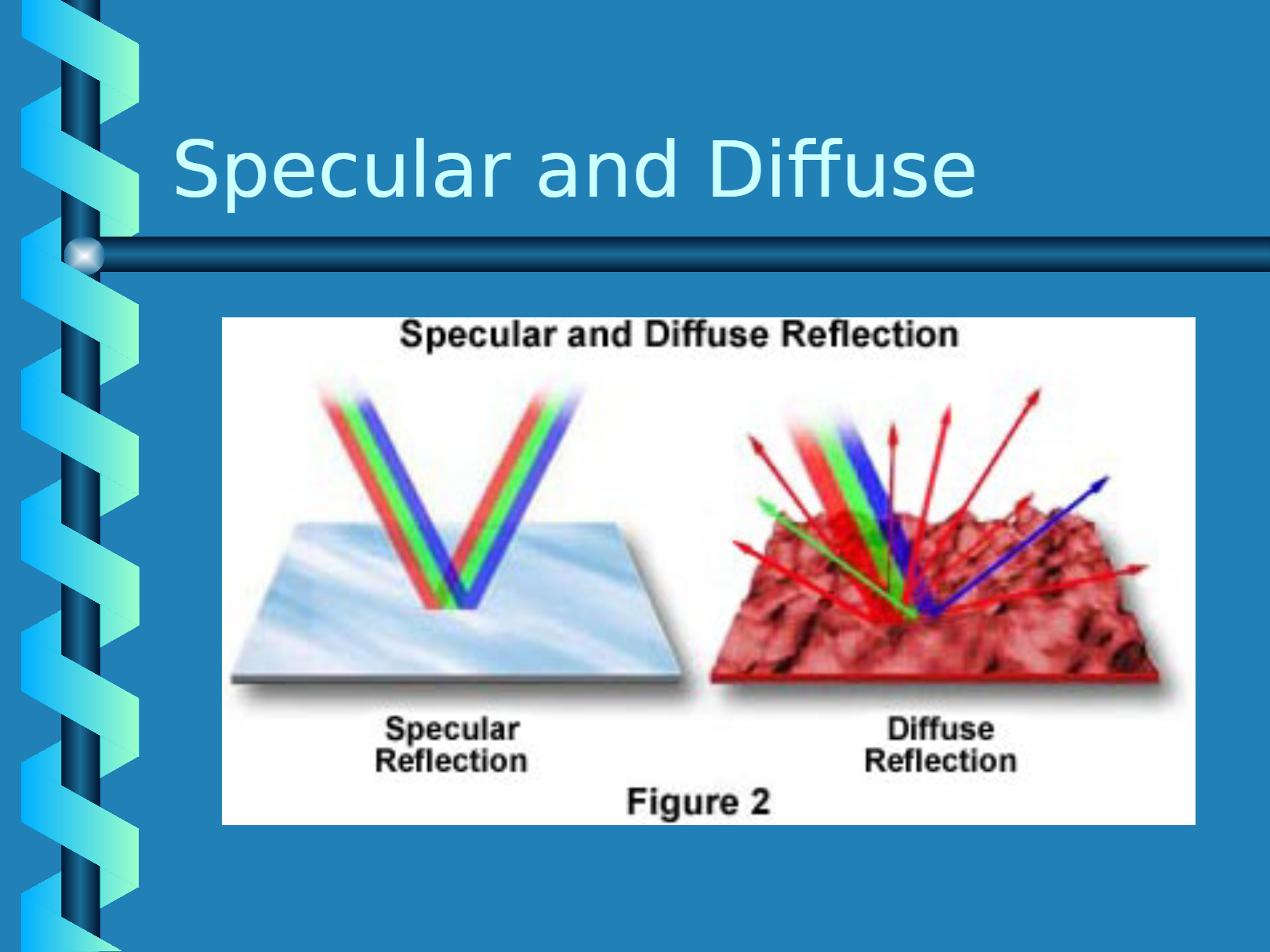

What is the main difference between specular and diffuse reflection?
29
30
Multiple Choice

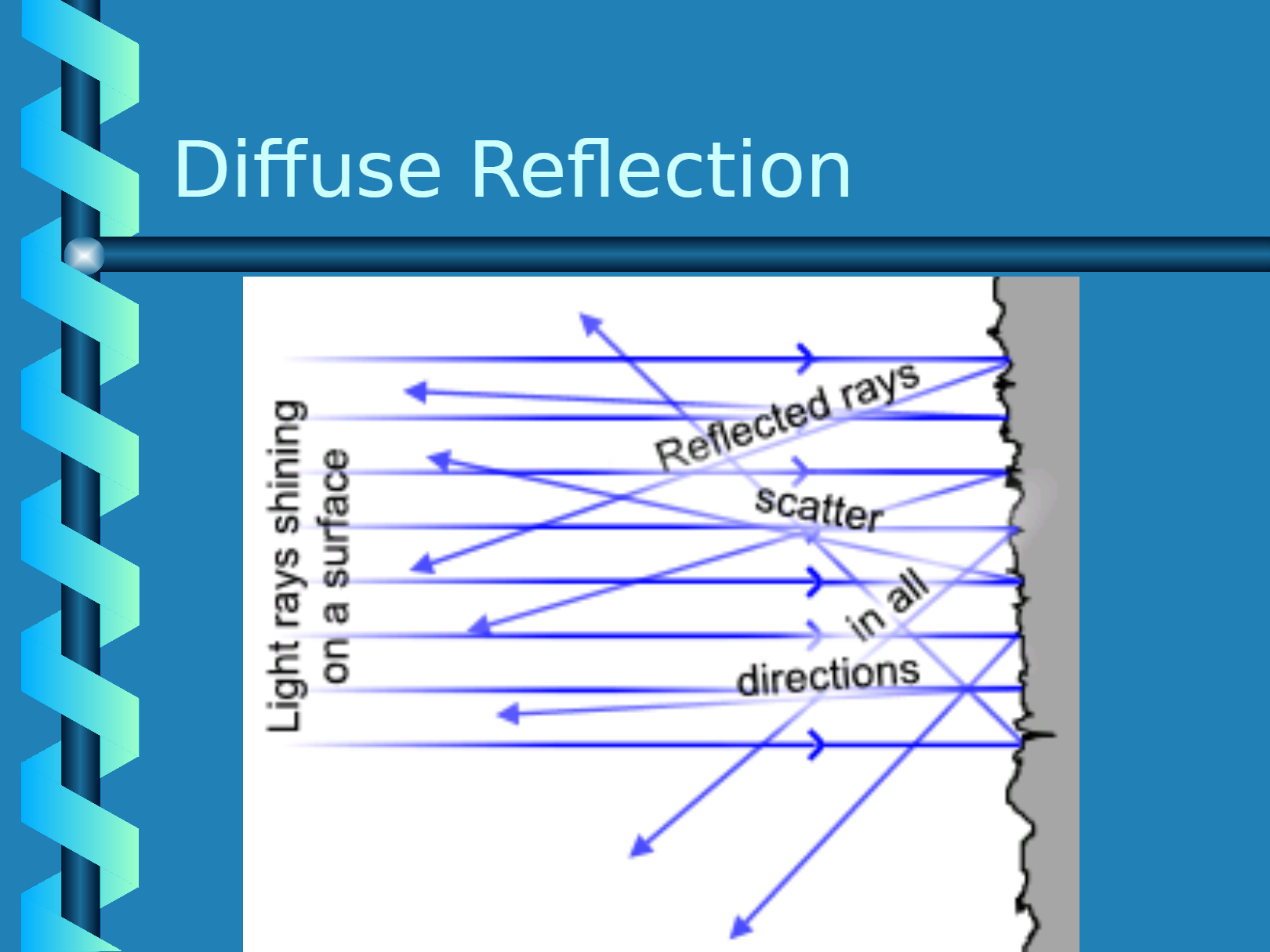

Which type of reflection results in light rays bouncing off in many directions due to a rough surface?
Specular reflection
Diffuse reflection
Rayleigh scattering
Absorption
31
32
33
Open Ended

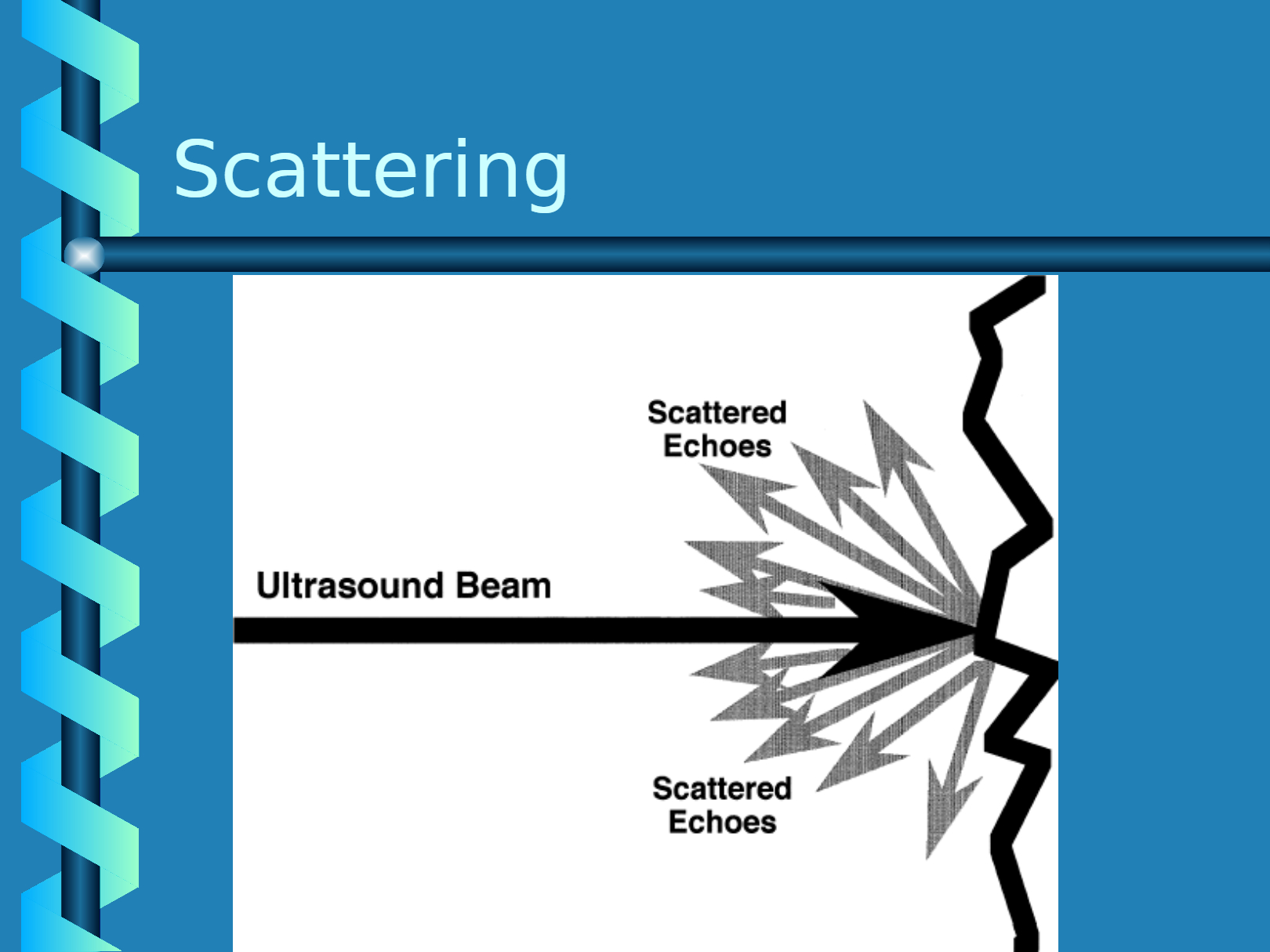

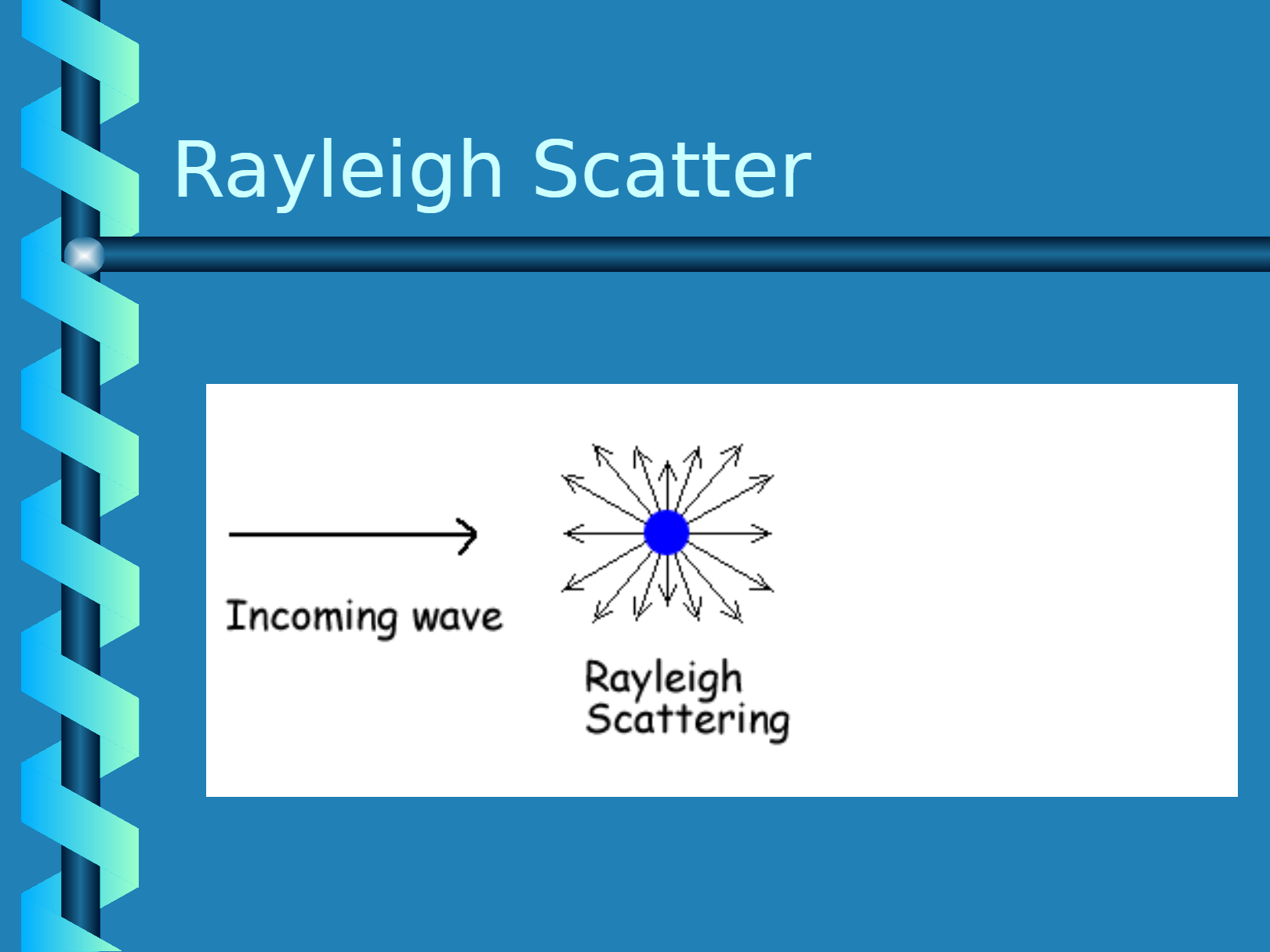

Explain how scattering and Rayleigh scattering differ in terms of the direction and cause of the scattered waves.
34
35
Fill in the Blanks
Type answer...
36
37
Multiple Choice

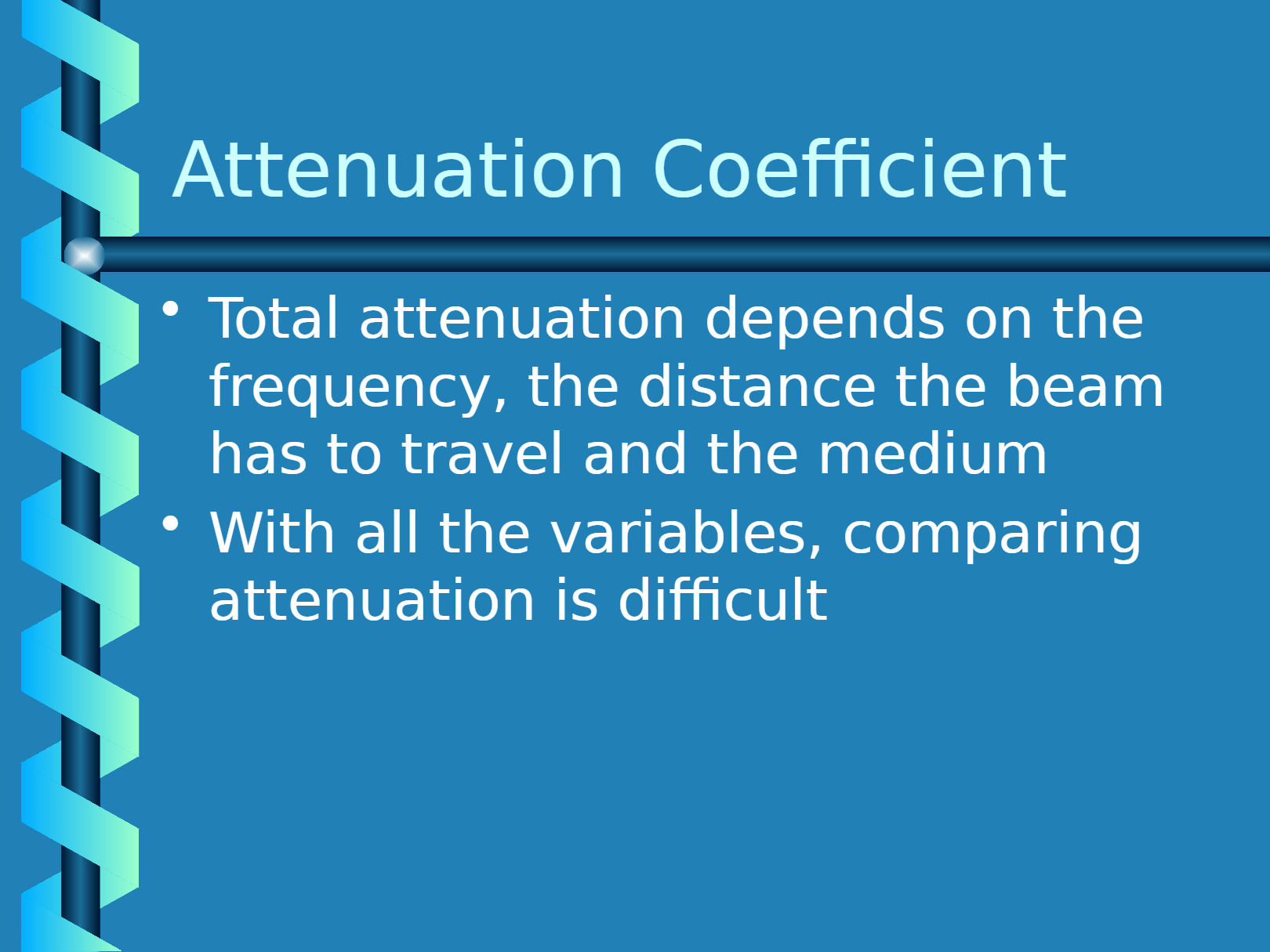

Which of the following factors affect the total attenuation of a sound beam?
Frequency
Distance traveled
Medium
All of the above
38
39
Open Ended
Describe how the concepts of reflection, scattering, absorption, and attenuation coefficient are interconnected in the context of ultrasound imaging.
40
Multiple Select

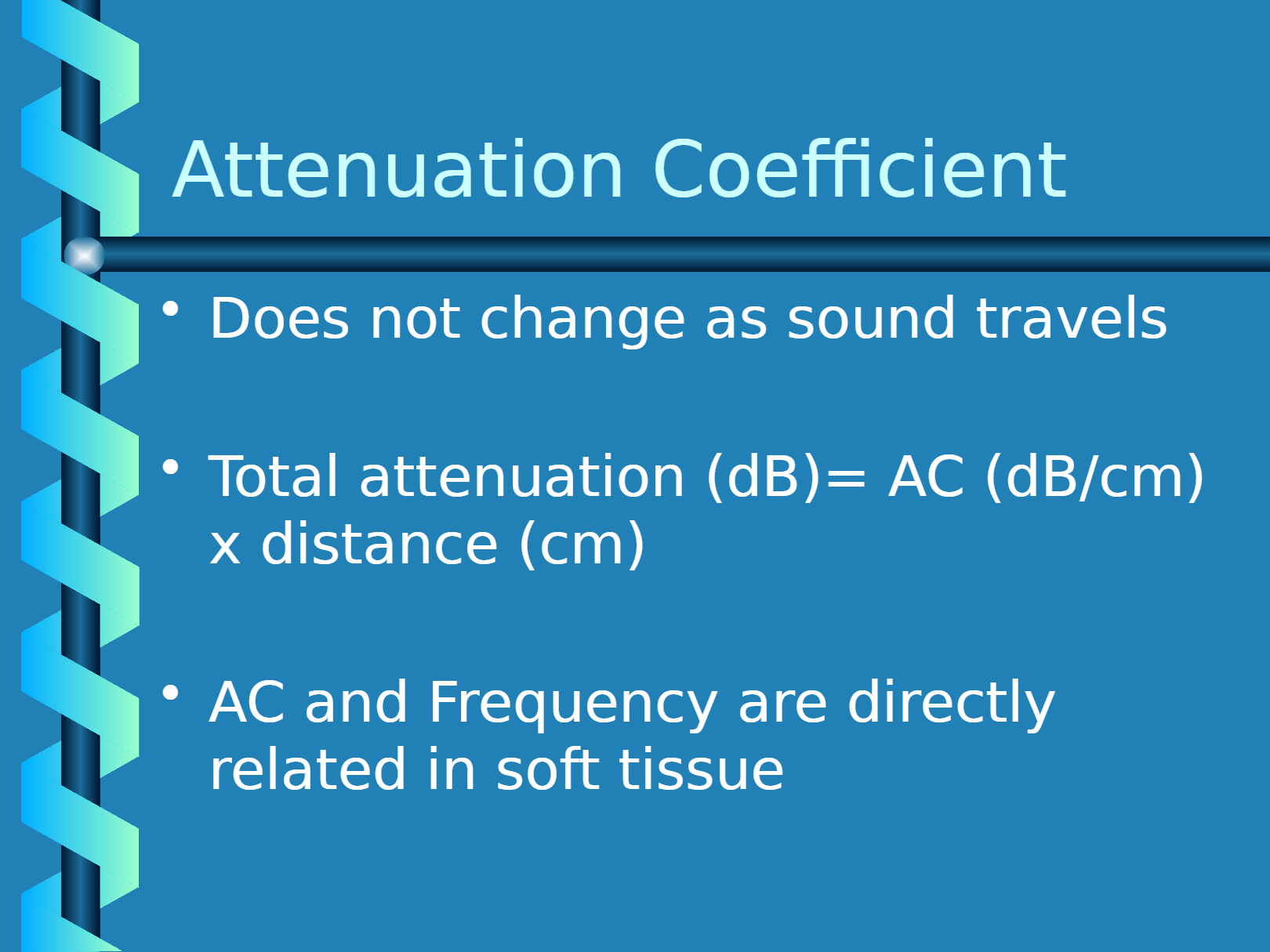

Select all statements that are true about the attenuation coefficient in soft tissue.
It does not change as sound travels.
It is directly related to frequency.
It is measured in dB/cm.
It decreases with increasing distance.
41
42
43
Open Ended
Explain how attenuation differs between muscle and bone when an ultrasound wave passes through them.
44
Multiple Choice
Which of the following mediums has the highest attenuation of ultrasound waves?
Air
Bone
Water
Biological fluids
45
46
Multiple Choice

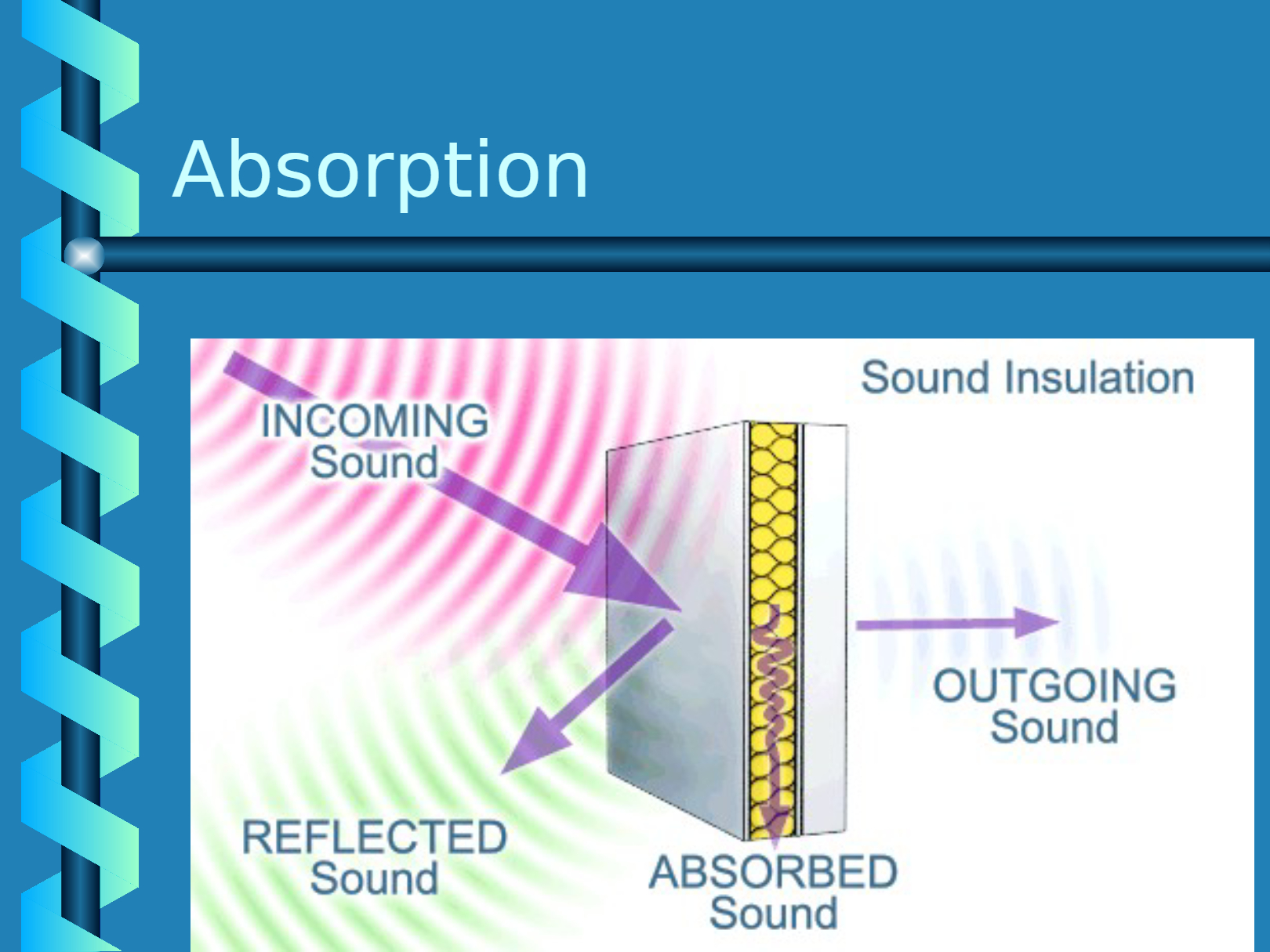

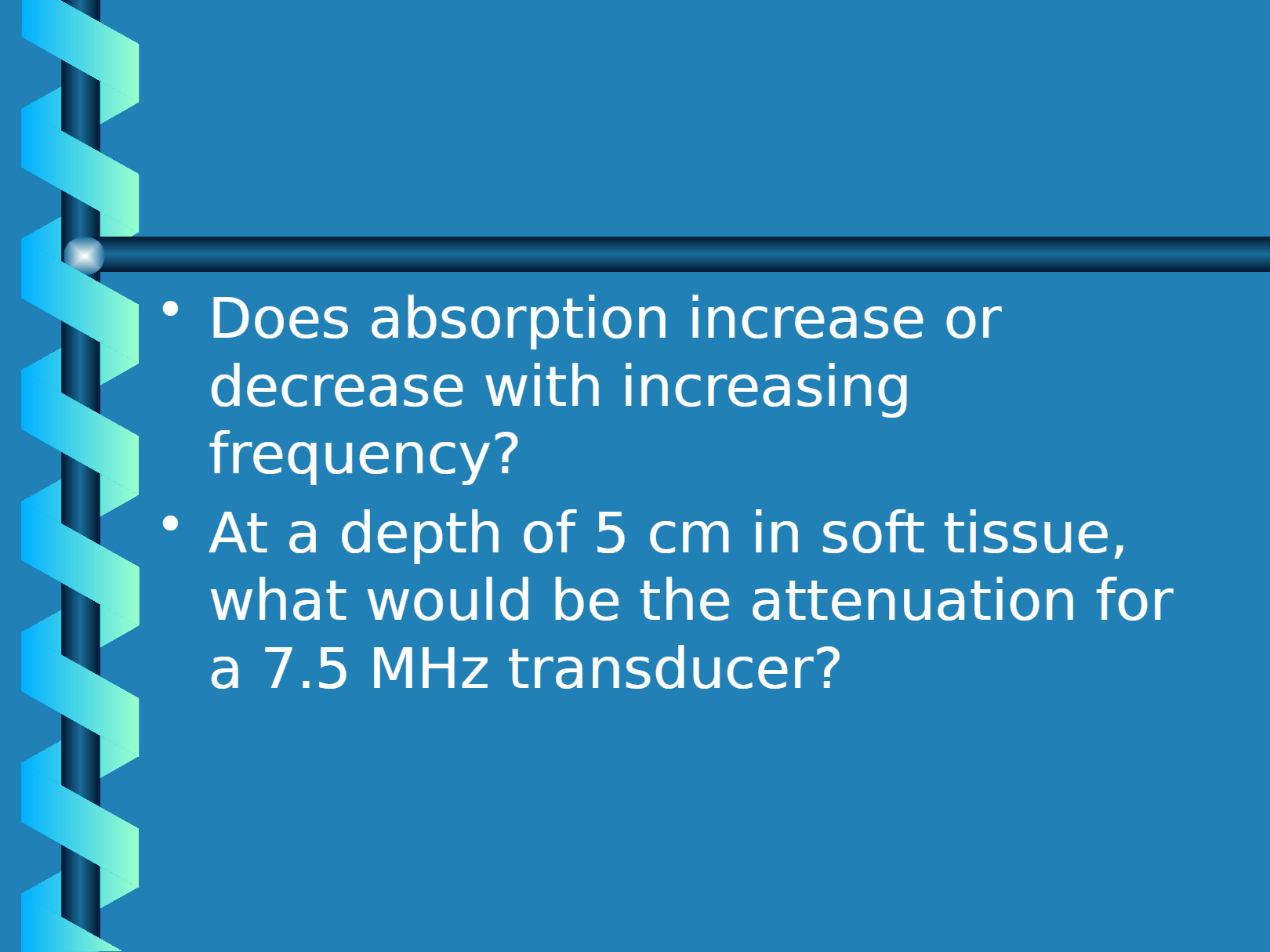

Does absorption increase or decrease with increasing frequency?
Increase
Decrease
Remain the same
Depends on the medium
47
48
Multiple Select

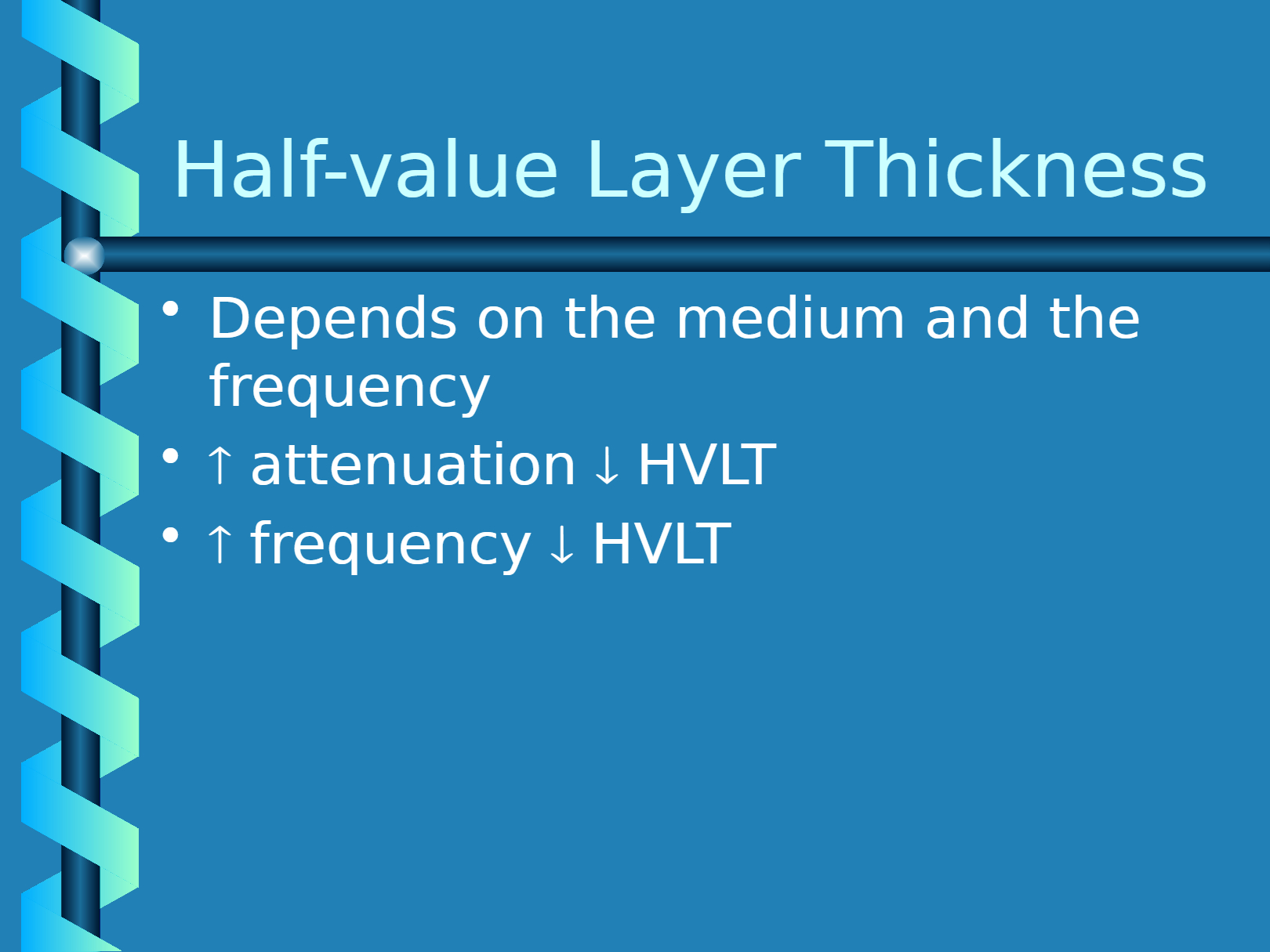

Half-value layer thickness depends on which of the following factors?
Medium
Frequency
Attenuation
All of the above
49
50
Open Ended

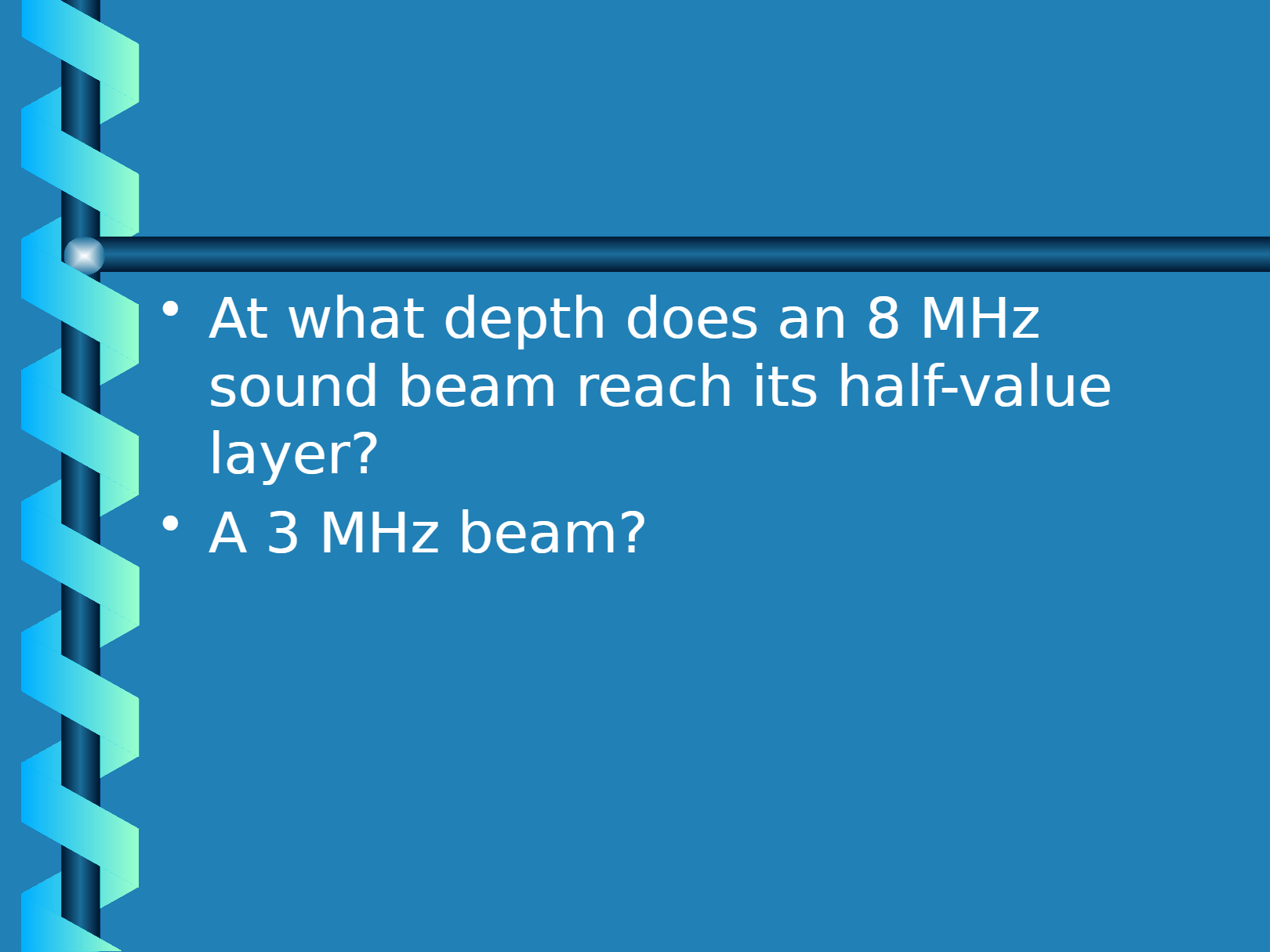

At what depth does an 8 MHz sound beam reach its half-value layer?
51
52
Fill in the Blanks
Type answer...
53
54
55
56
57
Open Ended
How do you think the concepts discussed about sound waves changing as they propagate through a medium could be applied in real-world scenarios, such as in medical imaging or communication technologies?
58
Multiple Choice

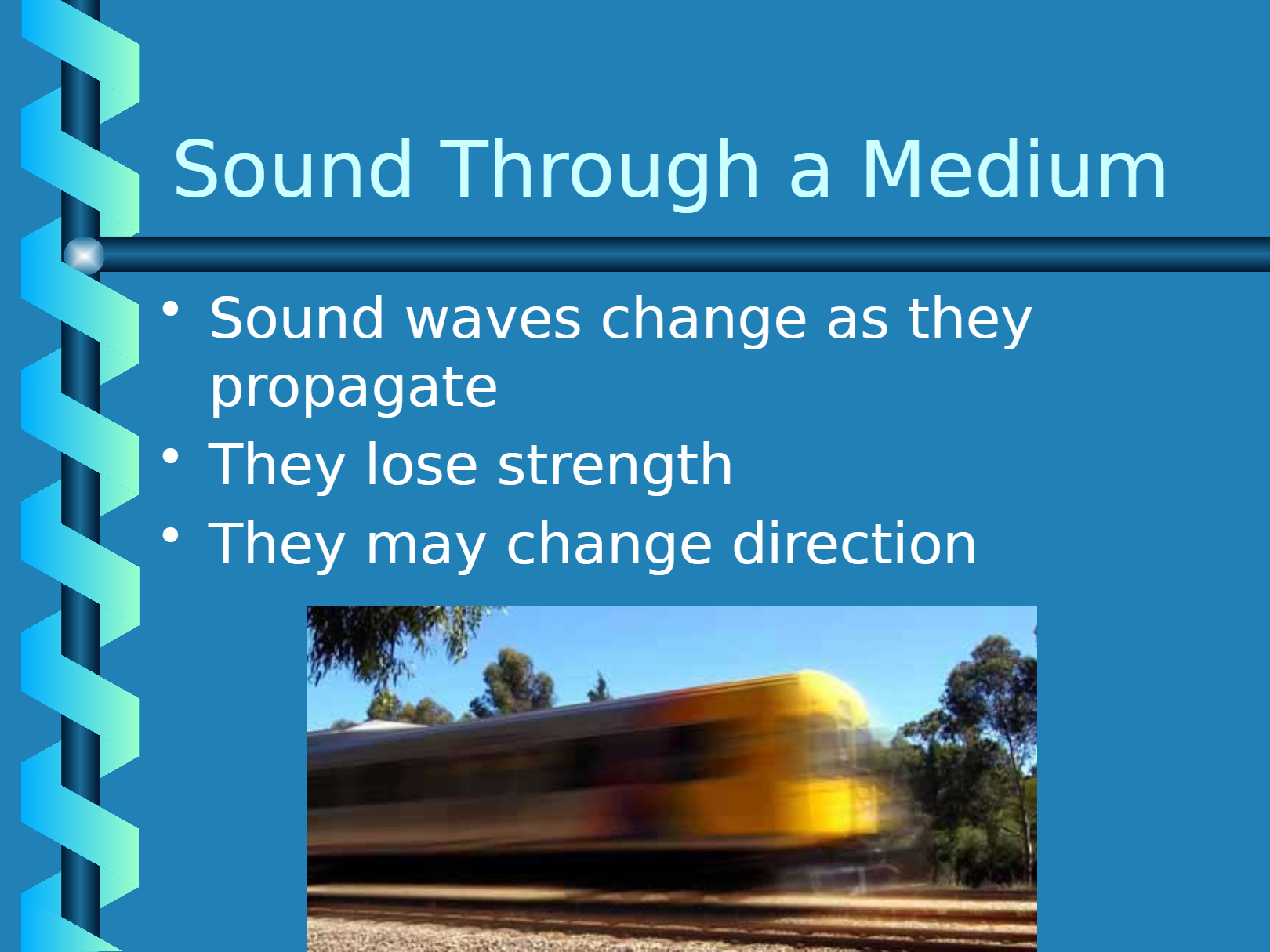

What are two changes that can happen to sound waves as they travel through a medium?
They increase in strength and speed
They lose strength and may change direction
They stop moving completely
They become visible to the eye
Show answer
Auto Play
Slide 1 / 58
