Materials and Joins

• Eye, hand, foot protection
• Guards and clamping
• Consequences of ignoring PPE

​

Workshop safety and PPE

• Magnetic vs non-magnetic
• Ductile vs malleable
• Properties affect join choice

​

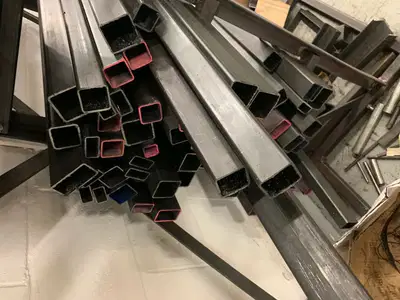

Metals & Properties

• Ductile = bends/draws
• Malleable = hammered to shape
• Hard/Tough resist wear/impact

​

Key Terms: Ductile, Malleable, Hardness, Toughness

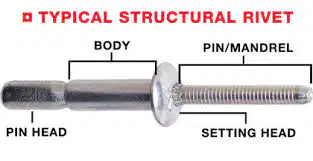

• Mechanical: bolts, rivets
• Fusion: welds by melting
• Choose by load and access

​

Joint Families: Mechanical vs Fusion

• Wire + shielding gas
• Short, consistent stick-out
• Fit-up and tacks first

​

MIG Essentials

• Stick flux makes shielding
• Less wind-sensitive than MIG
• For MIG use shields/indoors

​

Stick (Arc) vs MIG Outdoors

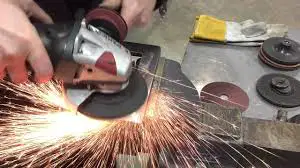

• Clean to bright metal
• Set parameters, fit-up, clamp

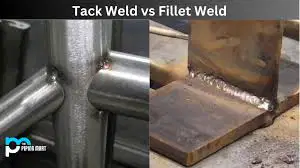

• Tack before full weld

​

Prep & Clamping Workflow

• Zinc fumes risk
• Coating causes porosity
• Grind off zinc, extract fumes

​

Galvanised Steel Hazards

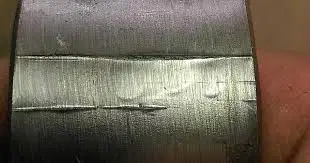

Name the defect
• First corrective action
• Cleanliness first

​

Defects & First Fixes

• Base metal changed by heat
• Properties shift near weld
• Manage with correct heat

​

​Heat-Affected Zone (HAZ)

• Mark and centre-punch
• HSS bit and clamp the stack
• Use washer as needed

​

Drill & Rivet / Bolt Workflow
